Rapier Loom

SALIENT FEATURES :

High quality weaving machine suitable for the production of high quality fashion fabrics of natural and synthetic yarns at low cost.

Sturdy Machine Frame and Unique drive resulting minimum maintenance. The main parts run in anti-friction bearing.

Rigid well design beat-up gives excellent fabric.

PLC base control panel.

Stable weft insertion.

Versatile Fabric weaving upto 500 gsm.

Unique drive give lowest maintenance.

TECHNICAL SPECIFICATIONS :

Machine Type	Flexible Rapier

Working Width	170Cms, 190Cms and 230Cms Reed Space.

Shedding	Positive Cam Type Dobby up to 24 Jack.

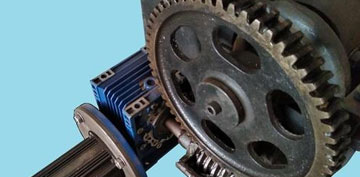

Take – up and Let- Off	Positive Take-up synchronized with Let-off ensure uniform tension from full to empty beam.

Weft Insertion	Up to 400 mts/min.

Warp Yarn Counts	Practically no limitation.

Weft Yarn Counts	120 Ne to 3 Ne (i.e.40 Den to 3000Den).

Control Panel	PLC Base control panel

Motor	2.2KW /1.5KWElectromagneticBrake Motor

Weft feeding	Weft Accumulators

Weft and warp control	Piezoelectric sensoer and Electric warp stop motion.

Sequence of Picks	PLC Programable pick sequence Up to 8 colours.

Lubrication	Centralized lubrication

MACHINE DIMENSION IN INCHES :
