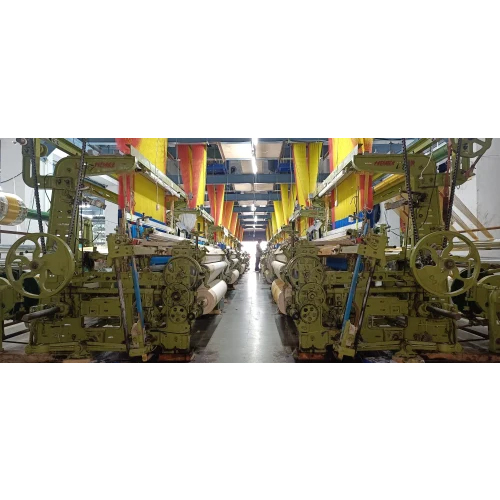

Premier Deluxe Loom

SALIENT FEATURES :

Thecomplete frame of loom is fitted with the Dowell pin at

differentjoints of binders, Crank bearing and Tappet bearing in

order tofacilitate foolproof align-meant while erection of the

loom.

Highgrade castings is used to give longer life to the

components.

Self-lubricatingbushes for crank shaft, tappet shaft, slay shaft

&emery roll bearings which eliminate frequent oiling.

Pickingnose and picking bowl made up of special quality metal

to givelonger life.

Hob-cutgears to give smooth and noiseless working & uniform quality of fabrics.

Theoverall perfect workmanship using latest machining techniques, Jigs &Fixtures to give best performance of the entire loom.

Aboveall prompt and efficient after sales services.

TECHNICAL SPECIFICATIONS :

Shuttle Box	2x1, 2x2, 4x1, 4x4

Reed Space	46", 54", 56", 64", 68",72", 84"

Beating	The slay is carefully made fromselected good quality of seasoned Teak wood with shisham wood raceboard fitted with polished slay cap is incorporated in the loomwhich ensures stable flight of the shuttle and correct beating.

Shedding	Double treadle and cone pulleytype shedding system is provided which is suitable for Planeweaving, Jacquard weaving and dobby with 24 shafts.

Letting Off	The letoff systems is of twotypes, 1. Attached frame type where the area is limited and Separateframe type. 2. The positive separate type of letoff system ensuresuniform letoff speed and uniform warp tension.

Taking Up	The take up motion incorporatespickle's indirect 7 wheels take up motion with ratchet wheels. Thesystem performs accurate take up motion even at high pick weaving.The change gears is such that one tooth corresponds to one pick.

Picking	The unique centre picking isadopted for smooth and uniform working even at high speed operation.The mechanism is so designed as to ensure Longer life for shuttle,pickers and picking stick.

OPTIONAL FEATURES :

Weft, Warp Stop	Electronic Infrared Feeler SystemInfrared Rays System (Fork over tension stopping)

Driving	Electronic Brake Motor (0.7 kw,8p). Push Button System Driven by the individual motor drive through18" Dia V-belt pulley which has its own flywheel effect andhence the light touch on handle will start the loom with perfectsmoothness.

Cutter	Heater Cutter Or MechanicalCutter. Blower Motor - 200 w.

MACHINE DIMENSION IN INCHES :
